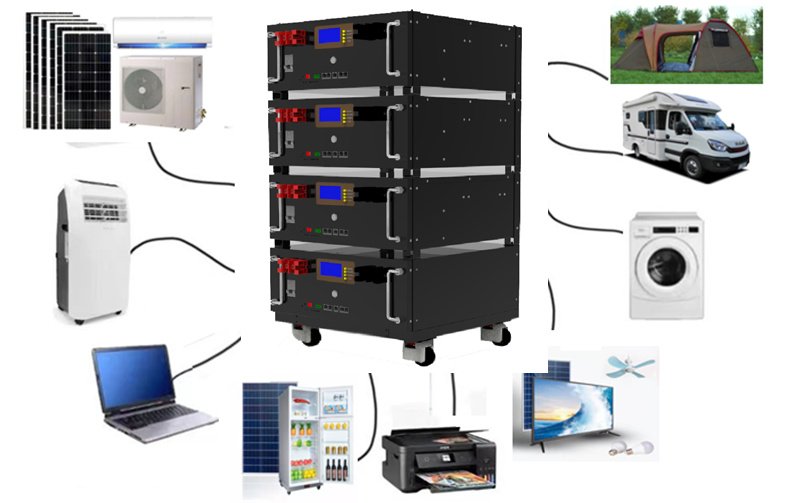

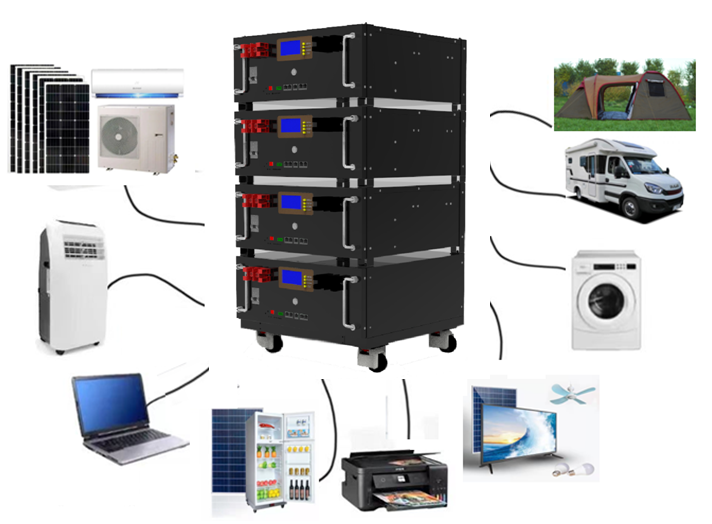

Product view from the quotation

Product views and illustrations from this series’ quotation. Select a view, then open the main image at its original resolution. Illustrated appliances and solar panels are not included unless itemized.

Capacity configurationsOEM quotationOptional solar package

C11 / Manufacturer supply

11kW Stackable Energy Storage System

Name: 11kW Stackable Energy Storage System
SKU: C11

Stackable system option for inverter-and-battery procurement.

Solar distributors and system integrators comparing inverter output, module energy and the site electrical configuration.

11000WRated output

10240WhSelected nominal energy

51.2VBattery basis

Select the configuration to quote

Get configuration & sample quote ↗

Send your quantity and target market. MOQ, sample terms, lead time and available documents are confirmed in the quotation.

Buying considerations Configurations Interfaces & dimensions Runtime planning Sample & OEM

Why shortlist this series?

Decide where it fits in your product range.

Who should compare it?

Solar distributors and system integrators comparing inverter output, module energy and the site electrical configuration.

What makes the comparison useful?

Compare the inverter tier, permitted module count, battery current capability, communication and what is included in the system supply.

What is the capacity trade-off?

More battery modules increase nominal energy within the supported design; they do not automatically increase inverter output.

What package should be quoted?

List inverter, battery modules, connection cables, protection, documentation and any optional PV scope.

Capacity choice

Choose the working-time and handling balance.

These are configurations within the same series. V, Ah and Wh links lead to matching configurations across the catalog.

Model / style	Rated output	Battery V	Capacity Ah	Nominal Wh	Quoted net weight	Choose
YX-D11200	11000W	51.2V	200Ah	10240Wh	Confirm with quote	Quote this option ↗
YX-D11300	11000W	51.2V	300Ah	15360Wh	Confirm with quote	Quote this option ↗
YX-D11400	11000W	51.2V	400Ah	20480Wh	Confirm with quote	Quote this option ↗
YX-D11500	11000W	51.2V	500Ah	25600Wh	Confirm with quote	Quote this option ↗
YX-D11600	11000W	51.2V	600Ah	30720Wh	Confirm with quote	Quote this option ↗

Compare correctly: output W describes the power class; battery Wh describes nominal stored energy. A capacity change can affect weight and charging without changing rated output.

Interfaces & construction

Inspect the specification
that affects daily use.

Compare the quoted version with your target market and equipment. Ask for port photos, the charger label, actual configuration weight and the accessory list with the sample quotation.

AC output (quoted version)	AC230V/50Hz
MPPT input (verify limits)	800-450V/100A/MAX
Product dimensions	456 × 426 × 160 mm

Ratings above describe the source quotation version. Final market version and any changes belong in the agreed specification.

Working-time planning

Translate capacity
into a load discussion.

Use a simple planning estimate to compare battery options. Enter the simultaneous load and an assumed usable-energy factor, then discuss a representative test for the equipment.

This is an arithmetic planning tool, not a product test result. Conversion, standby use, temperature, discharge limits and changing loads affect actual runtime. Device startup and electrical compatibility are separate checks.

Selected nominal battery energy WhSimultaneous load WAssumed usable-energy factor

Illustrative working-time estimate—

Formula: nominal Wh × assumed factor ÷ load W. The factor is an assumption you choose, not a measured specification for this product.

Applications

Where this series enters the selection process.

Solar panels installed on the roof of a home

Home Solar Energy Storage ↗

Plan a stackable inverter-and-battery arrangement around the home’s actual electrical system, daily loads and intended operating mode.

Telecommunications tower and radio equipment

Telecom Backup Planning ↗

Evaluate storage configurations for a defined telecommunications backup requirement. The application description is a starting point for engineering review, not a guarantee of telecom system compatibility.

Sample & OEM order

Approve the product and the supplied package.

Buying step	What to agree	What to inspect
Configuration	Series, model, V/Ah/Wh and market version	The sample matches the chosen model and interface list
Sample evaluation	Request component model identifiers, a confirmed supported configuration, the installation scope and documents for your intended market.	Load test, charger, controls and actual handling
Branding	Logo, labels, packaging and manual scope	Artwork revision and the approved physical sample
Package contents	List inverter, battery modules, connection cables, protection, documentation and any optional PV scope.	Accessory quantities, cable types and carton contents
Order & support	Quantity split, inspection, delivery and warranty scope	Quotation and approved specification revision

Before you request a quote.

Which capacity should I choose?

Use your equipment schedule and handling priorities. Compare the configurations in the table and use the planning estimate as a starting point, then evaluate the selected sample.

Is the solar panel included?

Request an itemized station-plus-panel package if needed. Confirm panel ratings, connector, cables and charger alongside the station.

Can I use my brand on this series?

Send the product model, quantity split, artwork and packaging/manual requirements. The available customization scope and sample process can then be quoted.

What should I compare with another series?

Compare the inverter tier, permitted module count, battery current capability, communication and what is included in the system supply.

Which documents are available?

Ask for the files associated with the exact model and electrical version you intend to purchase. Identify any market or transport requirements in the inquiry.
