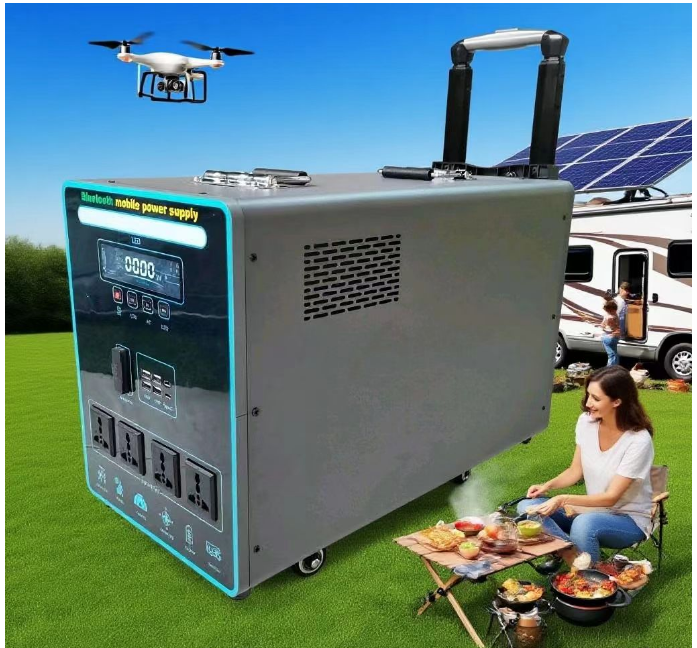

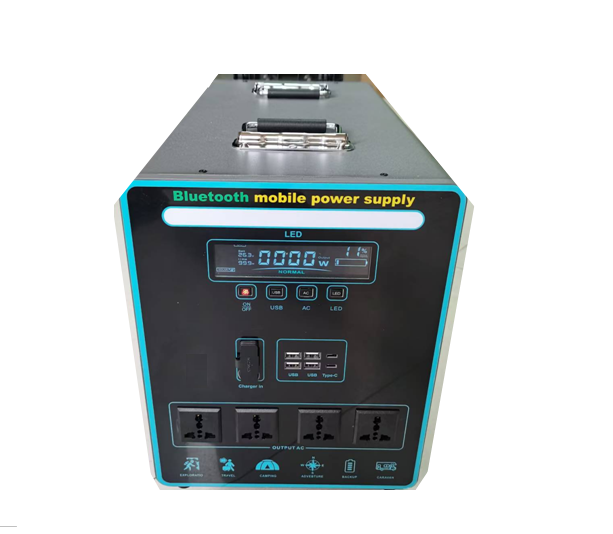

Product view from the quotation

Product views and illustrations from this series’ quotation. Select a view, then open the main image at its original resolution. Illustrated appliances and solar panels are not included unless itemized.

Capacity configurationsOEM quotationOptional solar package

LB3000 / Manufacturer supply

LB3000 · 3000W Wheeled Power Station

Name: LB3000 · 3000W Wheeled Power Station
SKU: LB3000

Mobile power option for selected equipment and field use.

Equipment distributors, field-operation buyers and OEM brands evaluating power, energy, movement and charging together.

3000WRated output

2048WhSelected nominal energy

25.6VBattery basis

Select the configuration to quote

Get configuration & sample quote ↗

Send your quantity and target market. MOQ, sample terms, lead time and available documents are confirmed in the quotation.

Buying considerations Configurations Interfaces & dimensions Runtime planning Sample & OEM

Why shortlist this series?

Decide where it fits in your product range.

Who should compare it?

Equipment distributors, field-operation buyers and OEM brands evaluating power, energy, movement and charging together.

What makes the comparison useful?

Compare the exact-capacity weight, wheel/handle structure, continuous demand, load startup and the charger arrangement.

What is the capacity trade-off?

Higher nominal energy adds reserve but changes handling and turnaround; larger output must be assessed against the actual equipment.

What package should be quoted?

List station, handling instructions, charger, cables, optional panel and any Bluetooth monitoring demonstration for the selected model.

Capacity choice

Choose the working-time and handling balance.

These are configurations within the same series. V, Ah and Wh links lead to matching configurations across the catalog.

Model / style	Rated output	Battery V	Capacity Ah	Nominal Wh	Quoted net weight	Choose
YX-LB2080	3000W	25.6V	80Ah	2048Wh	Confirm with quote	Quote this option ↗
YX-LB2086	3000W	25.6V	86Ah	2201.6Wh	Confirm with quote	Quote this option ↗
YX-LB20100	3000W	25.6V	100Ah	2560Wh	Confirm with quote	Quote this option ↗
YX-LB20100	3000W	25.6V	120Ah	3072Wh	Confirm with quote	Quote this option ↗

Compare correctly: output W describes the power class; battery Wh describes nominal stored energy. A capacity change can affect weight and charging without changing rated output.

Interfaces & construction

Inspect the specification
that affects daily use.

Compare the quoted version with your target market and equipment. Ask for port photos, the charger label, actual configuration weight and the accessory list with the sample quotation.

Charger rating (quoted version)	AC180-240V/14.6V/30A/ /XT90
Product dimensions	538 × 260 × 380 mm

Ratings above describe the source quotation version. Final market version and any changes belong in the agreed specification.

Working-time planning

Translate capacity
into a load discussion.

Use a simple planning estimate to compare battery options. Enter the simultaneous load and an assumed usable-energy factor, then discuss a representative test for the equipment.

This is an arithmetic planning tool, not a product test result. Conversion, standby use, temperature, discharge limits and changing loads affect actual runtime. Device startup and electrical compatibility are separate checks.

Selected nominal battery energy WhSimultaneous load WAssumed usable-energy factor

Illustrative working-time estimate—

Formula: nominal Wh × assumed factor ÷ load W. The factor is an assumption you choose, not a measured specification for this product.

Applications

Where this series enters the selection process.

Campsite & Emergency LED Lighting ↗

Compare source-listed power products for led lamps at a campsite or during a temporary power interruption. Match equipment input, simultaneous demand and the required operating session before selecting the battery configuration.

A remote campsite and its essential equipment

Emergency Field Power ↗

Consider mobile battery stations for lighting, communications and selected equipment in temporary field operations. The station must be evaluated as part of the operating plan.

A worker using a drill on a wooden structure

Mobile Worksites & Tools ↗

Explore higher-output stations for selected tools and temporary equipment supply where extension leads or a permanent outlet are impractical.

A phone connected to charging accessories

Phone & USB Device Charging ↗

Compare source-listed power products for phone charging at outdoor gatherings and temporary charging points. Match equipment input, simultaneous demand and the required operating session before selecting the battery configuration.

Sample & OEM order

Approve the product and the supplied package.

Buying step	What to agree	What to inspect
Configuration	Series, model, V/Ah/Wh and market version	The sample matches the chosen model and interface list
Sample evaluation	Demonstrate the intended equipment over its real duty cycle and review handling, loading and the next recharge.	Load test, charger, controls and actual handling
Branding	Logo, labels, packaging and manual scope	Artwork revision and the approved physical sample
Package contents	List station, handling instructions, charger, cables, optional panel and any Bluetooth monitoring demonstration for the selected model.	Accessory quantities, cable types and carton contents
Order & support	Quantity split, inspection, delivery and warranty scope	Quotation and approved specification revision

Before you request a quote.

Which capacity should I choose?

Use your equipment schedule and handling priorities. Compare the configurations in the table and use the planning estimate as a starting point, then evaluate the selected sample.

Is the solar panel included?

Request an itemized station-plus-panel package if needed. Confirm panel ratings, connector, cables and charger alongside the station.

Can I use my brand on this series?

Send the product model, quantity split, artwork and packaging/manual requirements. The available customization scope and sample process can then be quoted.

What should I compare with another series?

Compare the exact-capacity weight, wheel/handle structure, continuous demand, load startup and the charger arrangement.

Which documents are available?

Ask for the files associated with the exact model and electrical version you intend to purchase. Identify any market or transport requirements in the inquiry.
